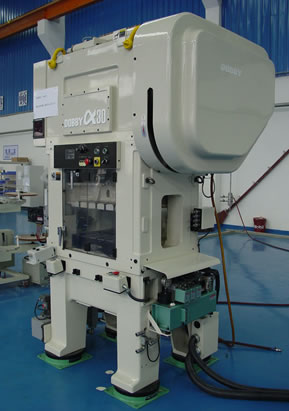

High Speed Stamping Precision Press α-30Ⅱ

Type α-30 press has achieved a sale record of 1000 sets in Japan，and Type α-30II press with matured technologies is now coming to China 。
4 Post guide & 2 Plunger guide 。

Presicion of bottom dead point is brought by α-dynamic balancer and Hydraulic slide adjust lock 。
Most apporpriate solution for products with narrow space like connectors 。

■α-30Ⅱ
ITEM	MEASUREMENT	SPECIFICATION
Press Capacity	kN	300 (30ton)
Stroke Length	mm	25	30
Stroke per Minute	spm	150~1000	150~1000
Die Height	mm	227	225
Slide Adjustment	mm	50
Bolster	mm	550×450×90
Slider Lower Area	mm	550×320
Bed Opening	mm	450×80
Slide Opening	mm	220
Air Supply	MPa	0.5 (5 kg/cm²)
Consuming Current	A	100
Max Up Die Weight	kg	90
Motor	Kw	4P × 7.5Kw
Color	-	Standard (Monsel N8.5,N2.5)
EQUIPMENT	SPECIFICATION	EQUIPMENT	SPECIFICATION
Slide Adjust Lock	Hydraulic Type	Leakage Circuit Breaker
Height Adjust Device	Motor	Crank Angle Indicator	Digital Type
Oil Temperature Control System	Heat / Cooling System	Die Height Indicator	1/100mm
Dynamic Balancer	Full Dynamic Balancer	Auto Top Stop	○
Front and Rear Doors	With Interlock	Micro Inching	○
Jamming Separator		Spare Digital Cam/6 rows	Without AMP
Waste Oil Tank	1.6L	Air Coupler	1PC
Anti-vibration Device	DVP	Air Gun	With Coupler
Stock Lubricator	1.6L Solenoid Valve Dropping Type	All Stop Circuit	With Timer
Inner Material Guide	○	Plug Socket	100V/2pcs(without transformer) 200V/2pcs(twist type)
Digital Multi Meter	Total Counter 8 Digits	Stop Connectors	Top Stop/2pcs
	Preset Counter ( 8 Digits )		Emergency Stop/2
	SPM meter	Die Lamp	Fluorescent Lamp
	Hour Meter	Speed Setup	Inching,Singel Stroke
	Ampere Meter	Pendant Switch	Inching(both hands), Top Stop,Emergency Stop
Speed Control Device	○	Motor Reversing Device	○
